Chassis Mount Ute Canopies
Opting for a chassis-mounted ute canopy provides distinct advantages, particularly in terms of weight and cost efficiency. While other manufacturers may label their products as chassis-mounted canopies, they commonly incorporate an intermediary canopy base or tray base. Our genuine chassis mount design assures the canopy directly bolts to the chassis, offering increased rigidity and durability. This direct attachment not only results in a lower centre of gravity for the entire vehicle but also achieves more even weight distribution. These factors enhance overall stability and contribute to better handling. Explore our two chassis mount canopy options below.
.jpeg)

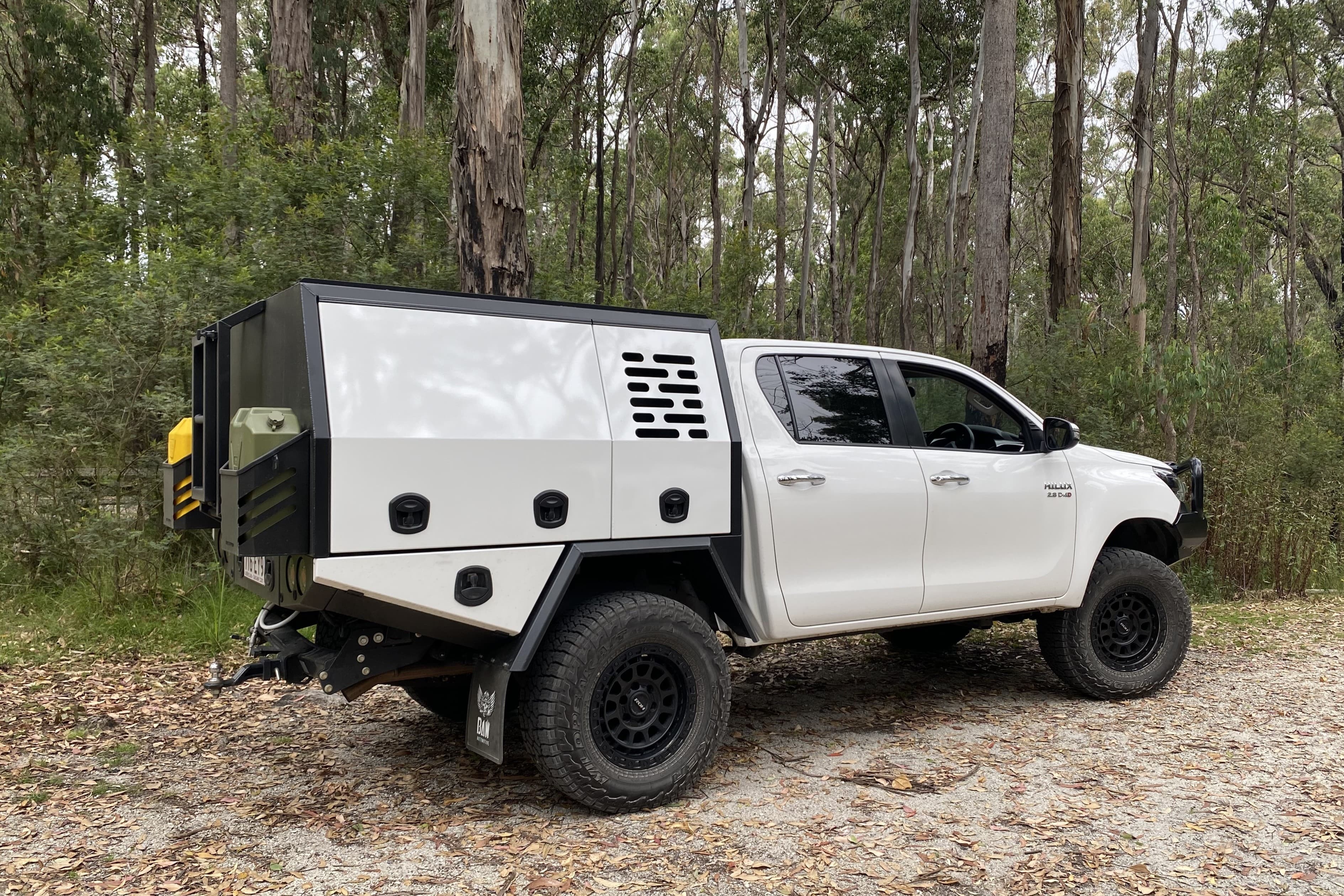

Full Length Chassis Mount Canopy
.jpg)

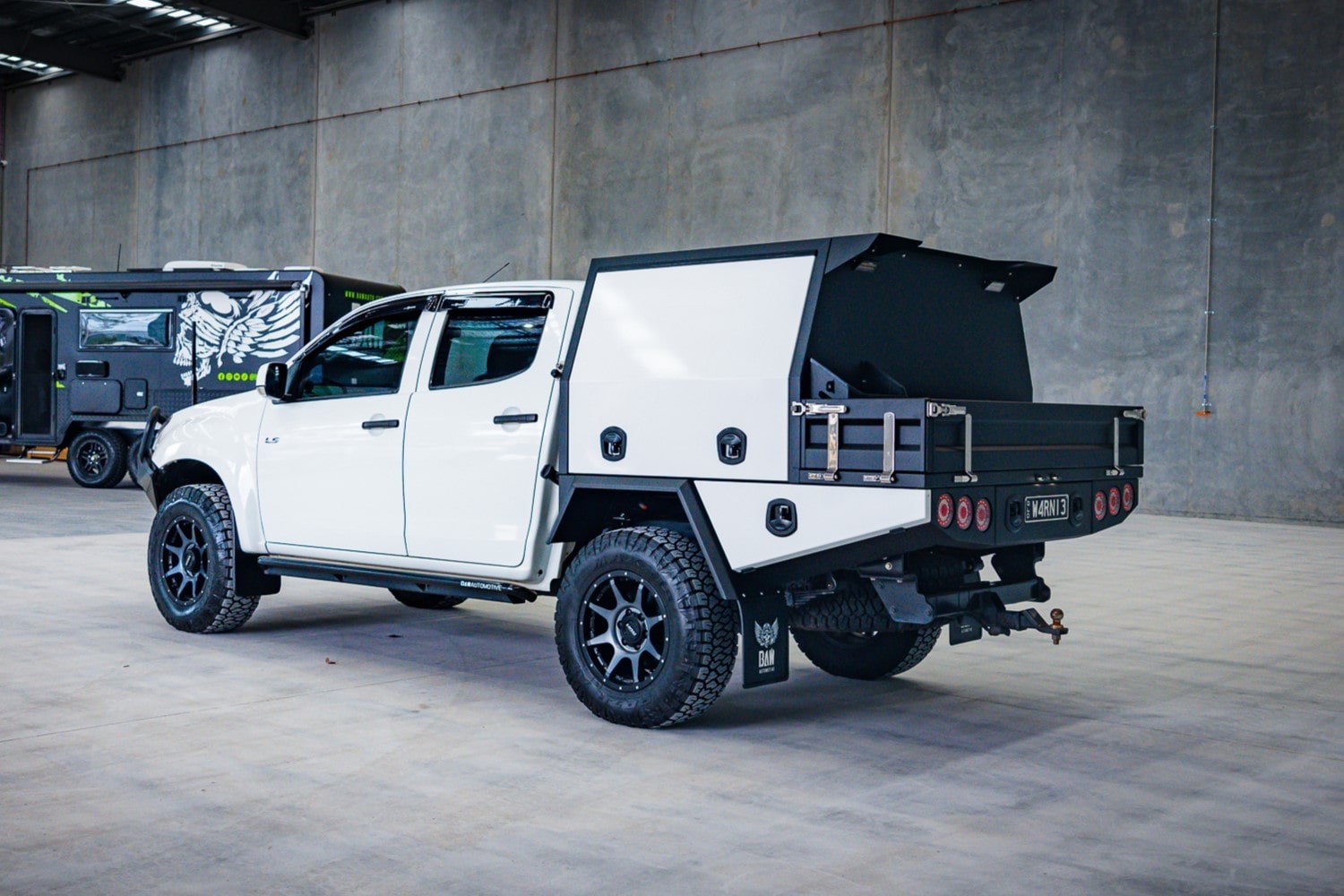

Platform Chassis Mount Canopy

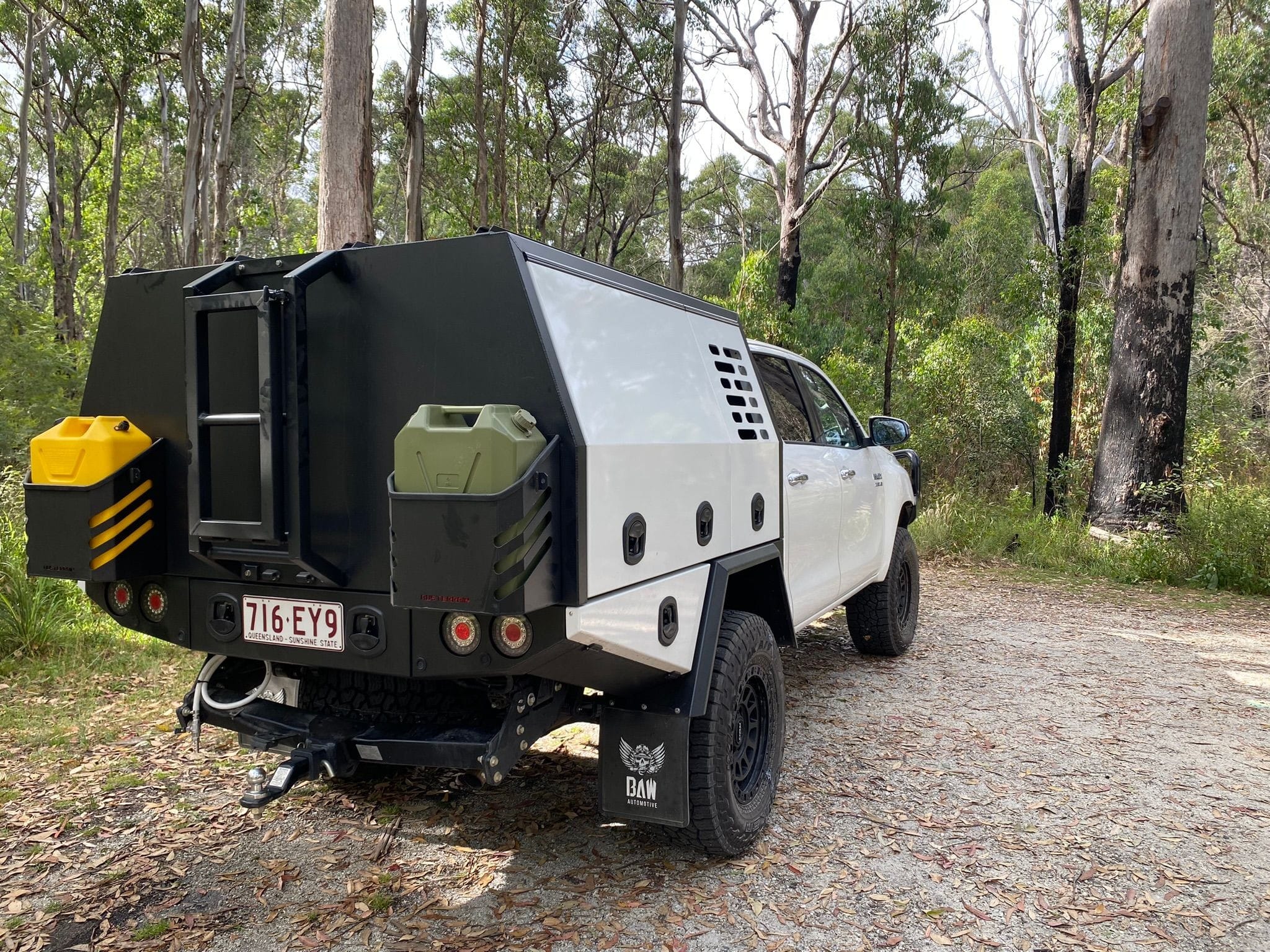

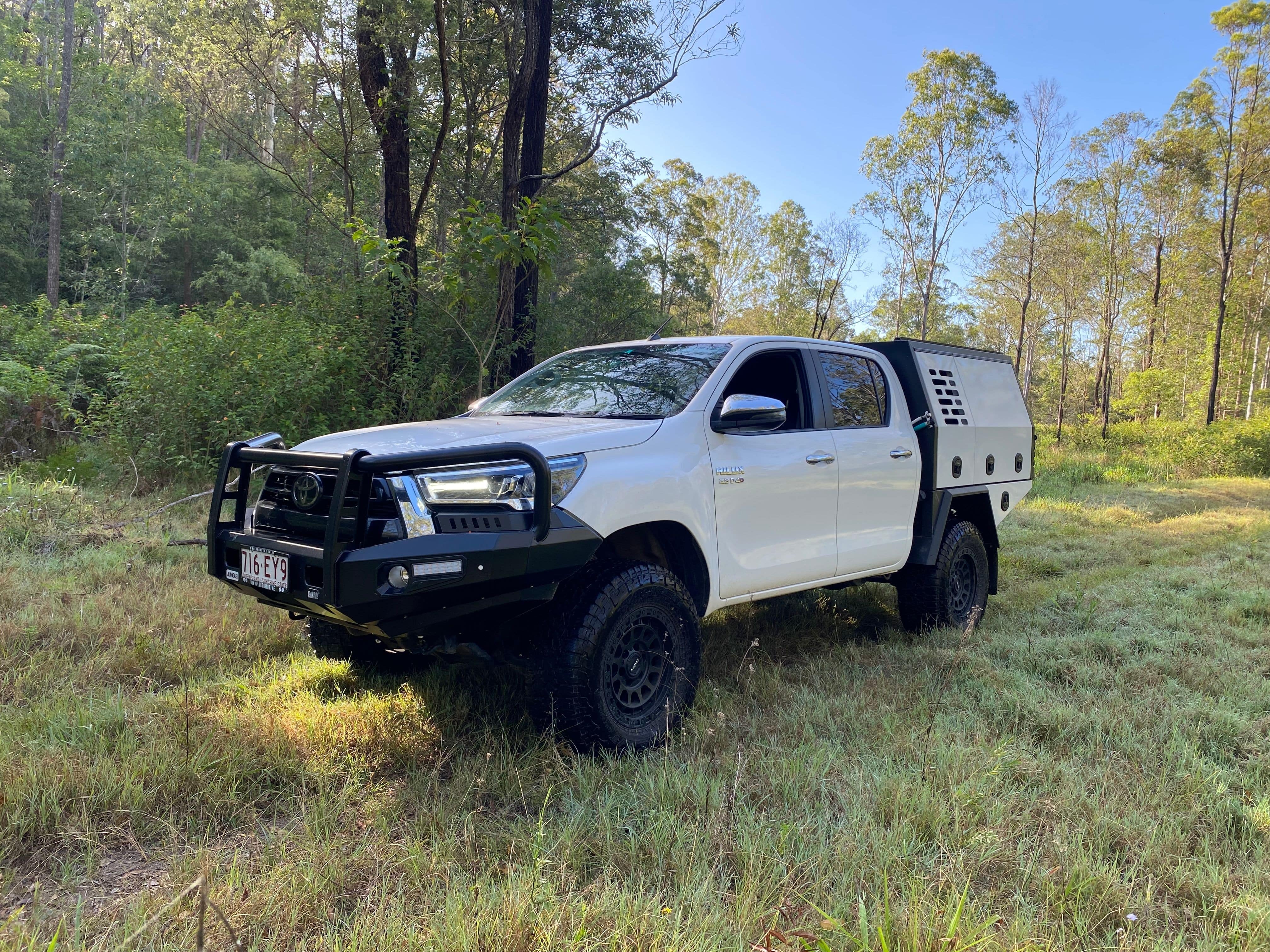

full length chassis mount canopy
Our classic Full Length Chassis Mount Canopy is perfect for those wanting maximum weatherproof storage capacity, and is a great option if you're considering adding a dog box.
VEHICLE COMPATIBILITY
- Toyota Hilux Dual Cab
- Toyota LC79 Dual Cab
- Ford Ranger Dual Cab
- Isuzu D-MAX Dual Cab
- Mazda BT-50 Dual Cab
- RAM 1500/2500/3500 Crew Cab
Standard inclusions:
- 3mm aluminium canopy body with high quality TIG welded exterior and double folded gutter system
- A combination of 40mm x 3mm aluminium SHS with 40mm x 3mm Unistrut full internal structural canopy frame
- 3mm aluminium flush floor
- 2x 3mm aluminium recessed side doors with our unique 2mm aluminium double skin door stiffener, adjustable gas struts, centaflex continuous hinge & whale tail handles
- 3-4mm aluminium bolt-on flared wheel guards with mud flaps
- 3mm aluminium bolt-on tapered underside toolboxes with whale tail handles
- 3mm aluminium bolt-on taillight panels
OPTIONAL:
- Fully powder coated in textured black (internal & external)
- Colour matched painted canopy/toolbox doors
- 3mm aluminium sealed trundle drawer with 227kg slides & 2x whale tail locks
- Quality Australian made food grade poly water tank with fill point, breather & outlet
- Built-in dog box
- Electronic whale tail handles
- Aluminium fold-down ladder
- Aluminium jerry can holder
- Spare wheel mount
- Low profile Unistrut roof rails for easy installation of rooftop accessories (e.g., Roof top tents, roof racks & solar panels)
- Aluminium roof rack
- Custom internal fitouts
Starting from $12,990 (inc. GST)

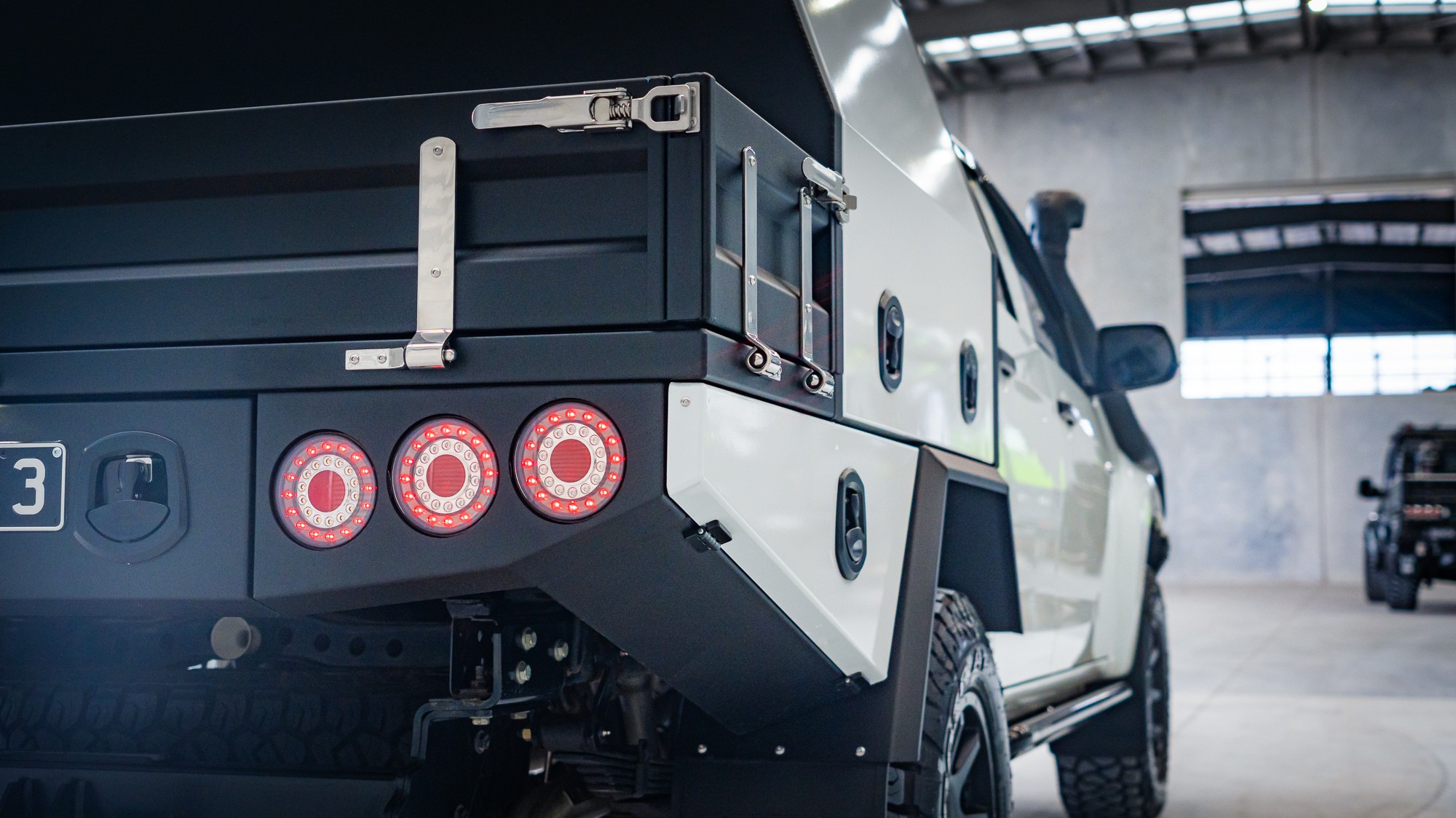

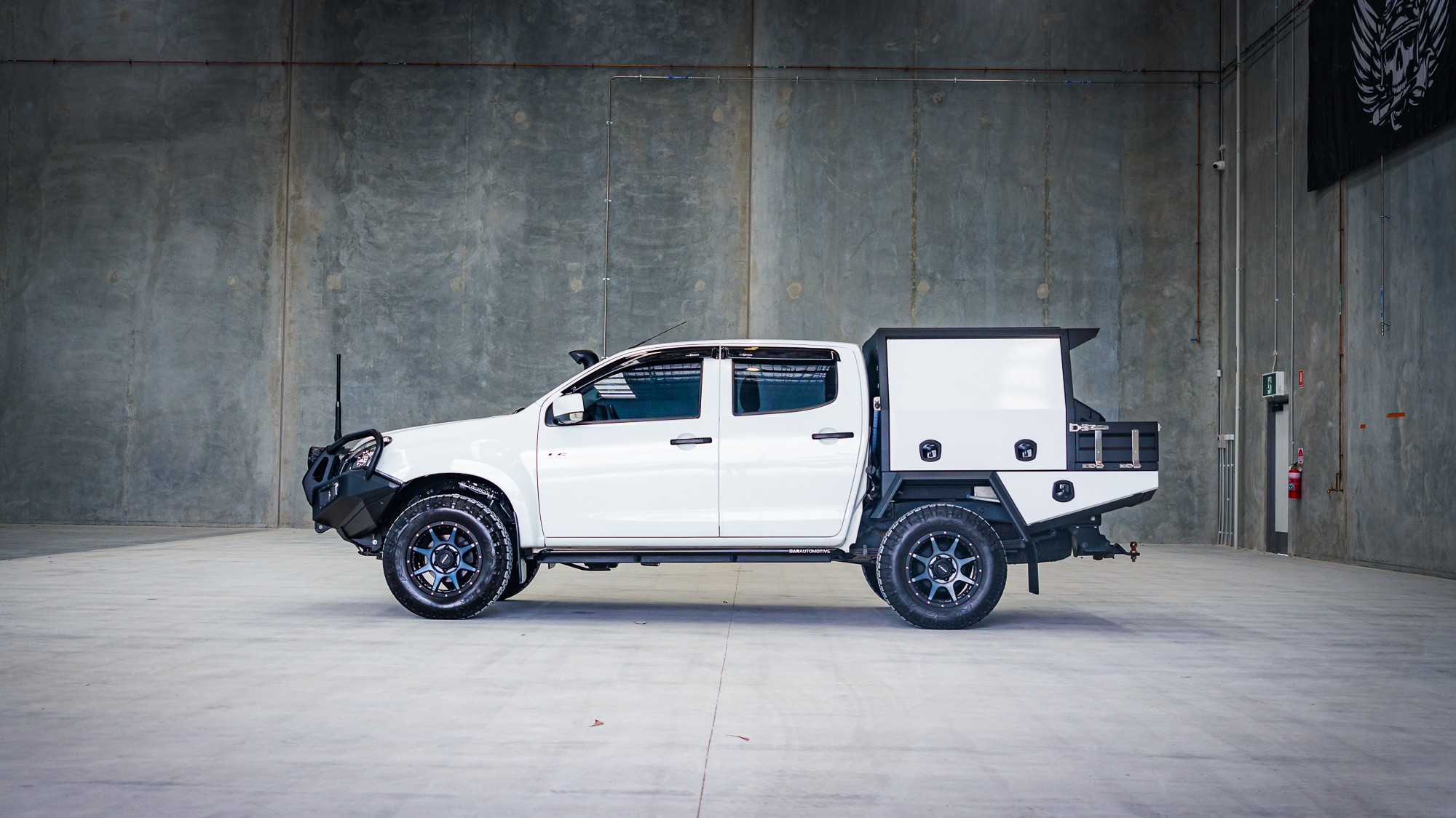

PLATFORM chassis mount canopy
Our Platform Chassis Mount Canopy features a shorter canopy design, providing space for a versatile integrated rear platform. This is an excellent option if you're looking for a bit of external storage flexibility. You can easily enhance security by adding platform drop-sides.
VEHICLE COMPATIBILITY
- Toyota HiLux Dual Cab
- Toyota LC79 Single & Dual Cab
- Ford Ranger Dual Cab
- Isuzu D-MAX Dual Cab
- Mazda BT-50 Dual Cab
- RAM 1500/2500/3500 Crew & Quad Cab
Standard inclusions:
- 3mm aluminium canopy body with high quality TIG welded exterior and double folded gutter system
- A combination of 40mm x 3mm aluminium SHS with 40mm x 3mm Unistrut full internal structural canopy frame
- 3mm aluminium flush floor
- 2x 3mm aluminium recessed side doors with our unique 2mm aluminium double skin door stiffener, adjustable gas struts, centaflex continuous hinge & whale tail handles
- 3-4mm aluminium bolt-on flared wheel guards with mud flaps
- 3mm aluminium bolt-on tapered underside toolboxes with whale tail handles
- 3mm aluminium bolt-on taillight panels
- 3mm aluminium rear platform with 50mm x 5mm aluminium frame
OPTIONAL:
- Fully powder coated in textured black (internal & external)
- Colour matched painted canopy/toolbox doors
- 3mm aluminium sealed trundle drawer with 227kg slides & 2x whale tail locks
- Quality Australian made food grade poly water tank with fill point, breather & outlet
- Built-in dog box
- Electronic whale tail handles
- Aluminium jerry can holder
- Spare wheel mount
- Rear hood
- Low profile Unistrut roof rails for easy installation of rooftop accessories (e.g., Roof top tents, roof racks & solar panels)
- Aluminium roof rack
- Aluminium platform drop-sides
- Platform stainless steel recessed tie down points
- Custom internal fitouts
